This model of 29 inch Ultra Wide Bar LCD is composed of a TFT LCD
panel,a driver circuit and a backlight unit.
29 Inch Ultra Wide Monitor Stretched Bar Lcd 1920x540 500nits With
Touch For Bus Airport Display
The resolution of 29inch Stretched Bar Lcd is 1920*540 and this
model can display up to 16.7M colors with wide viewing angle of 89
degree or higher in all directions.This panel is intended to
support applications by providing an excellent performance for Flat
Panel Display such as pubic information display(PID),public
monitor.
29 inch Ultra Wide Bar LCD Features
RoHS compliance(Pb-free)
High contrast ratio,high luminance
High Tni Liquid Crystal(110 degree cetigrade)
SPVA(Super Patterned Vertical Align)mode
Wide viewing angle(+-178 degree)
1920*540 pixels resolution(32:9)
Edge type LED backlight
DE(data enable)mode
2Channel LVDS serial interface
Landscape/portrait type compatible
Face down(45 degree)usage available
Black mura improvement technology
The 29 inch stretched LCD product parameter:
| Panel size | 29" |
touch panel | LG incell CTP |
Active display area | 698.4*196.425mm |
Backlight Type | WLED edge Type |
Display color | 16.7M |
MAX.resolution | 1920*540 |
Refresh rate | 60Hz |
Viewing angle(L/R/U/D) | 89/89/89/89 (Typ.)(CR≥10) |
brightness | 500cd/m² |
contras | 1000:1 |
Response time | 6ms |
| Power Rating | AC 100-240V 50/60Hz |
uppacking dimension | 712.8*213.74*40.9mm |
package size | TBA |
Net Weight | TBA |
Gross Weight | TBA |
Wall | 100*100mm |

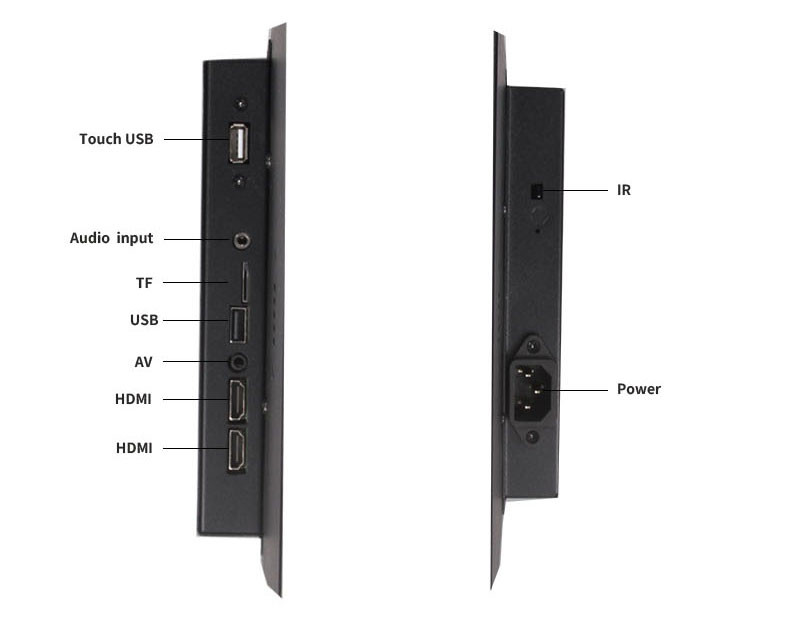

| HDMI | 2 |
AV | 1 |
USB | 1 |
USB(touch) | 1 |
SD card | 1 |
Audio out | 1 |
| 4Ω5W | 2(optional) |
| Monitor | 1 PSC |
USB Cable | 1 PSC |
HDMI Cable | 1 PSC |
Power cable | 1Pcs |
| Power consumption | ≤25W |
待机功率/ | ≤0.5W |
Operating voltage | 100V-240V AC 60/50Hz |
The 29inch stretched LCD product show :
About Us
Our company HuiZhou ChuFangxinyu, Technology co.LTD is a brand of
Clientop Industrial who was found on 2007. We are a high-tech
enterprise specializing in the development, production of special
LCD digital display and offering Digital advertising solutions for
oversea manufacturers over 13years.Our main products are all kind
of smart android tablets, smart shelf displays, LCD advertising
players, digital signage,LCD video wall and open frame displays
with metal and high end Aluminum.They are applied to supermarkets,
hotels, retail outlets, banks, metro station, leisure centers,
schools, hospitals and more. Our company lies in our innovative
design, expert engineering, personalize customer service and
competitive pricing. We work closely with our customers and always
focus on our customers requirements and needs.Our professional
knowledge and high quality of work make Our company your best
choice.And we continuously work hard to improve our products and
improve service quality to help more customers.
FAQ
1. Who we are?
We are based in Guangdong, China, start from 2007,sell to North
America(35.00%),Western Europe(30.00%),Southern Europe(10.00%),Mid
East(10.00%),Oceania(10.00%),Eastern Europe(5.00%). There are total
about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;Always final
Inspection before shipment.
3.What can you buy from us?
tablet,advertising machine,LCD video wall,digital signage,display
screen.
4. Why should you buy from us not from other suppliers?
Our company is Brand subsidiary Clientop Industrial who was found
on 2007. We are a high-tech enterprise specializing in the
development, production of special LCD digital display and offering
Digital advertising solution & technical support.
